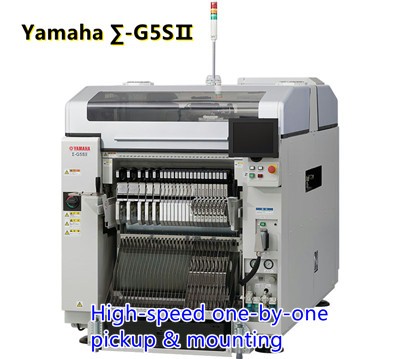

Name:Yamaha Chip Mounter ∑-G5SⅡ mounting machine
Model:Yamaha ∑-G5SⅡ
Brief:

Yamaha Chip Mounter ∑-G5SⅡ mounting machine The “1-head solution” rotary head provides speed, versatility and high operating ratio.

Content

The “1-head solution” rotary head provides speed, versatility and high operating ratio.

Two new head types in an evolution of the “1-head solution” to achieve high productivity: Accommodates super-small 0201mm (0.25 × 0.125 mm) size components and large components

  • Extended detection range of components held for better mounting quality
  • Larger internal buffer size to reduce feeding loss with large PCBs
  • Further detail revisions and refinements for added reliability
  • Compatibility with previous models
  • Specifications

      ∑-G5SⅡ
    Applicable PCB Single lane L610×W510 mm to L50×W50 mm
    (Optional: L1,200×W510 to L50×W50 mm)
    Dual lane L610×W250 mm to L50×W84mm (dual feed)
    L610×W415mm (single feed)
    Mounting capability High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
    Mounting accuracy
    (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
    High-Speed Multi (HM) Head 0201mm/03015mm: ±25μm/80,000 CPH
    0402mm: ±36 μm/85,000 CPH
    0603mm: ±40 μm/90,000 CPH
    Flexible Multi (FM) Head ±15μm
    Applicable components High-Speed Multi (HM) Head 0201mm to L44×W44×H12.7 mm or under
    Flexible Multi (FM) Head 1005mm to L72×W72×H25.4 mm or under
    Connector: 150×26 mm
    Number of component types 120 types max. (8 mm wide tape equivalent)
    Power supply 3-phase AC200V ±10%, 50/60Hz
    Air supply source 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
    External dimension (excluding projections) L 1,280 x W 2,240 x H 1,450mm
    Weight Approx. 1,800 kg
    Specifications and appearance are subject to change without prior notice.
