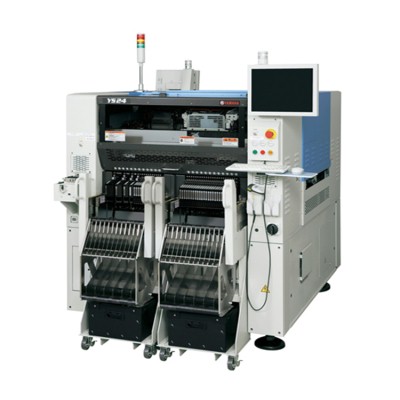

YAMAHA YS24 PCB Pick and Place Machine
❙ Features of YS24
YAMAHA PCB Pick and Place Machine YS24 Applicable PCB: L510mm x W460mm to L50mm x W50mm, Speed: 72,000CPH, Accuracy: +/-0.05mm (μ + 3σ), +/-0.03mm (3σ), Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less)
1. 72,000CPH (0.05sec/CHIP)
2. 34kCPH/㎡. Area-productivity, top class in the world
3. L700 x W460mm. Super large PCB applicable
4. YAMAHA Dual Lane System applicable
5. 120 Max feeder capacity
6. 0402 to 32 x 32mm(Components applicable)
❙ Specification of Yamaha YS24
| YS24 | |
|---|---|
| Applicable PCB | L50xW50mm – L700xW460mm |
| Mounting Capability | 72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor) |
| Mounting Accuracy | +/-0.05mm (μ + 3σ), +/-0.03mm (3σ) |
| Applicable Components | 0402 to 32x32mm MAX (Height 6.5mm or less) |
| Component Types | 120 types (Max./8mm wide tape reel conversion) |
| Power Supply | Three phase AC 200/208/220/240/380/400/416 V +/-10% |
| Air Supply Source | 0.45MPa |
| External Dimensions | L1,254x W1,687x H1,445mm (Excludin |
