YAMAHA YS100 YSM20 SMT Pick And Place Machine , SMT Chip Placer CE Approval
From: Author: Publish time:2021-09-01 21:11 Clicks:0
|Product Name:||YAMAHA YSM20 SMT MACHINE||Dimensions:||L1,665×W1,562×H1,445mm|
smt pick and place equipment,
pcb pick and place machine
YAMAHA YS100 YSM20 PICK AND PLACE MACHINE Manufacturer, YAMAHA SMT CHIP PLACER

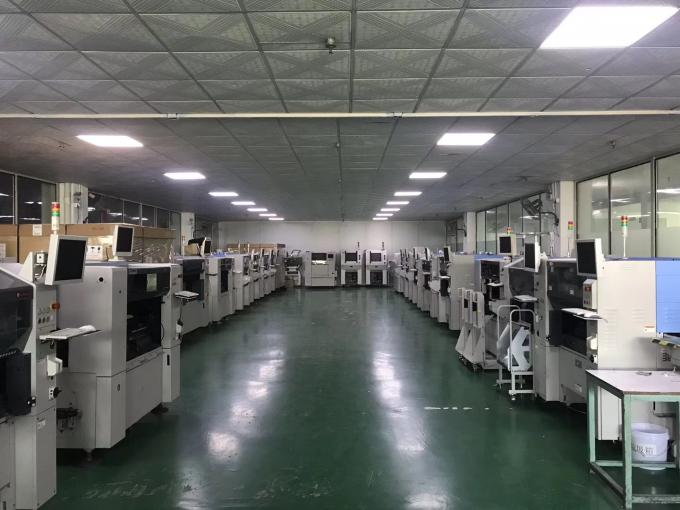

yamaha smt pick and place machine supplier in China,our company located in beautiful city of shenzhen which near by shenzhen airport and HongKong airport,we can arrange pick up you when you plan to visit our factory to the airport.
Currently, YAMAHA YS100 AND YAMAHA YSM20 PICK AND PLACE Machine are the most popular model in the world,as its high speed and stable working condition,many of customers choose these two model YAMAHA SMT PICK AND PLACE Machine.
Advantages of YAMAHA YSM20 SMT MACHINE:
1,20NOZZLES HEAD TOTAL
2,140 FEEDER slots total
3,Electronic feeder support
5,FEEDER MODEL:SS8/12/16/24/32/44/56MM ZS8/12/16/24/32/44/56MM
YAMAHA YS100 AND YAMAHA YSM20 PICK AND PLACE Machine both use electric feeder,such as :ss8MM FEEDER KHJ-MC110-00A,ZS8MM FEEDER KLJ-MC110-004 ,New and used both availble in our factory.
YAMAHA YS100 SMT PICK AND PLACE MACHINE
YAMAHA YS100 Target substrate is L50 × W50mm to L510 × W460mm
YAMAHA YS100 Placement efficiency is (Condition) 25,000CPH (equivalent to 0.14 seconds / CHIP)
YAMAHA YS100 Placement accuracy (μ + 3σ): ± 0.05mm / CHIP, ± 0.05mm / QFP
Repeatability (3σ): ± 0.03mm / CHIP, ± 0.03mm / QFP
YAMAHA YS100 Target components 0402 (mm series name) to 45mm components, SOP / SOJ, QFP, connectors, PLCC, CSP / BGA, long connectors (W45 × L 100mm or less) (Note 3) (Note 4) Component height 15mm Following (Note 5)
YAMAHA YS100 Component types 126 types (/ converted to 8mm tape) (Note 1)
87 types (/ converted to 8mm tape, when sATS is installed)
YAMAHA YS100 SATS (auto tray) is option,if you dont need SATS tray,then price more cheaper than with it, and you can install manual IC tray if YAMAHA YS100 machine not with sATS,
YAMAHA YSM20 SMT PICK AND PLACE MACHINE specification:
YAMAHA YSM20 Target substrate size: Two-stage conveyor model (only models with two beams on the X axis)
YAMAHA YSM20 When transferring one substrate: L810 × W490 to L50 × W50
YAMAHA YSM20 When transferring two substrates: L380 × W490 to L50 × W50
YAMAHA YSM20 Monorail model: L810 × W490 ～ L50 × W50
YAMAHA YSM20 Two-track model: L810 × W230 ～ L50 × W50
YAMAHA YSM20 Placement capability: High-speed universal (HM) placement head × 2
90,000CPH (under our best conditions)
YAMAHA YSM20 Mounting accuracy: ± 0.035mm (± 0.025mm) Cpk ≧ 1.0 (3σ)
YAMAHA YSM20 Mounting head, mountable components: High-speed universal (HM) mounting head: 03015 ～ 45 × 45mm L100mm, height below 15mm
※ Depending on the height and size of the component, an optional multi-vision camera may be required (optional configuration)
Shaped (FM) placement head: 03015 ～ 55 × 55mm L100mm, height below 28mm
YAMAHA YSM20 Number of feeders that can be installed: Fixed feeder racks: * More than 140 (equivalent to 8mm tape)
YAMAHA YSM20 One-time refueling car: * More than 128 (converted by 8mm tape)
YAMAHA YSM20 Pallet changer: 30 sheets (fixed type) 10 sheets (feeder type)
YAMAHA YSM20 Power specifications: three-phase AC 200/208/220/240/380/400 / 416V ± 10% 50 / 60Hz
YAMAHA YSM20 Air supply: above 0.45MPa, quiet and dry
YAMAHA YSM20 Dimensions: L 1,374 × W 1,857 × H1,445mm (excluding projections)
YAMAHA YSM20 Weight about 2,100kg
YAMAHA YSM20 SMT PICK AND PLACE MACHINE is a high-end placement machine nowadays, CNSMT supply both used and new yamaha ysm20 and ys100 pick and place machine ,we have professional yamaha smt engineer for our aftersales service
So please dont worry about aftersale, we have over 10years experience in the yamaha smt field,we export plenty of yamaha smt pick and place machines every year to all over the world,
Noarmally ,we packing yamaha smt pick and place machine with vacuum and hard woodenbox before shipping,ensure that machine is all well reach to your place
Yamaha Ysm20r Pick And Place Machine
The YAMAHA YSM20 pick and place machine as we all know is very important in making PCBs efficient. It makes the process effortless and quick. It is a robotic machine that will help to carry and put even the small parts on the circuit board. It will do its functions precisely and at the same time in a secure way as it does not sacrifice the quality of the components.
The parts must be securely attached to the gripper that is powered with vacuum air while it is making its way into the PCB. The component must not lose its grip to prevent damage.
Having said so, we would like to introduce to you the Yamaha Ysm20r SMT Machine. It is a premium machine that is created by Yamaha smt which is a famous brand of electronics. We are selling this yamaha smt machine at an affordable rate.
But before we sell it, we ensure that it underwent various standards check to give you a guarantee that it is in excellent condition. The quality of our yamaha ysm20 smt machine will give customers the satisfaction that they are looking for.
How do a YAMAHA YSM20 SMT Pick and Place Machine works?
It is premium equipment that is the missing key to improve your PCB production. It works silently yet very accurate in its movements. It has mechanical components that move flawlessly to pick up the smallest parts without any problems.
The tip vacuum-powered and will provide the right suction to ensure that it can successfully grip the components without damaging it. As a result, the production will be much faster and smoother.
The parts are put into their proper orientation before it reaches the surface of the PCB, to ensure that it will perform properly. So you can expect that the PCB will have no errors while it is under operation.
Why should you buy the Yamaha Ysm20r SMT Pick And Place Machine?
This YAMAHA SMT pick and place machine will take you to new heights of excitement because of its accuracy and elegance. This will make things easier for the employees to create circuit boards because everything will be automated. It guarantees perfectly made PCBs after the entire process has finished.
Do you offer a warranty for your Yamaha SMT Ysm20r Pick And Place Machine?
Yes, because we believe that the money that you paid to buy the machine that is why we make it sure that you get the most out of it. So we are only selling the best Yamaha Ysm20r Pick And Place Machine that has passed the quality standards required.
Does the machine have English language support?
The YAMAHA SMT YSM20 machine supports both English and other international languages. This will make sure that everyone will understand how to operate the machine. As a result, everything becomes easier when you are using the machine.
Do you provide after support on your Yamaha Ysm20r SMT Pick And Place Machine?
Yes, we see to it that all of our customers will not have a hard time figuring things out. They can ask questions if they have and we will answer it gladly. We are happy to help our customers because we believe that they are the reason why we are existing.
Do you also sell spare parts of the Yamaha Ysm20r SMT Pick And Place Machine?
Yes, we have a huge array of spare parts that will allow you to have a decent source of spare parts every time you need them.
How do you perform quality checks on your Yamaha Ysm20r Pick And Place Machine?
We ensure that we follow strict guidelines when it comes to quality checking. This is to ensure that no steps will be skipped which is detrimental in having a high-quality pick and place machine. It will make the YAMAHA YSM20 SMT pick and place machine to get the results that you are expecting.
How long will the Yamaha Ysm20r SMT Pick And Place Machine will arrive after ordering?
It primarily depends on several factors such as the location and the current situation in the area. But mostly, it takes less than one week for an order to arrive if no hindrances occur on the delivery process.
