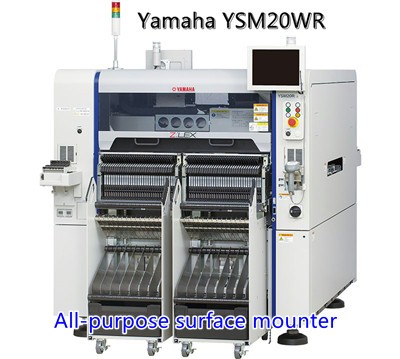

Name:High speed YAMAHA YSM20WR surface Mounter
Model:YAMAHA YSM20WR
Brief:

World’s fastest mounting speed in its class; 5% faster than the YSM20.

Featuring a new wide-scan camera with improved component adaptability.

Optional features improving line operating rate without stopping the machine

Content

YAMAHA Modular YSM20WRWorld’s fastest mounting speed in its class; 5% faster than the YSM20WR.

Featuring a new wide-scan camera with improved component adaptability.

Optional features improving line operating rate without stopping the machine



Model YSM20WR
Applicable PCB Dual lane
Note 1 Same type PCBs: L810 x W356 to L50 x W50
    Different type PCBs: up to L810 x W662
Note 2 Same type PCB: L810 x W280 to L50 x W500
    Different type PCBs: up to L810 x W510
Head / Applicable components High-Speed Multi (HM) Head Note 3
0201mm to W55 x L100mm, Height 15mm or less
Odd-shaped components (FM: Flexible Multi) head:
03015mm to W55 x L100mm, Height 28mm or less
Mounting capability
(under optimum conditions as defined by Yamaha Motor)
X axis 2-beam Note 1: High-speed multi-purpose
(HM: High-speed Multi) head x 2
81,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder)
Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder)
Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 2,110 x H1,445mm (Main unit only)
Weight Approx. 2,500kg (Main unit only)
Note 1 : When using conveyor separation specifications of 787mm between 1 to 4 lanes
Note 2 : When using conveyor separation specifications of 630mm between 1 to 4 lanes
Note 3 : Please contact us for info regarding mounting 0201mm components.
Specifications and appearance are subject to change without prior notice.
