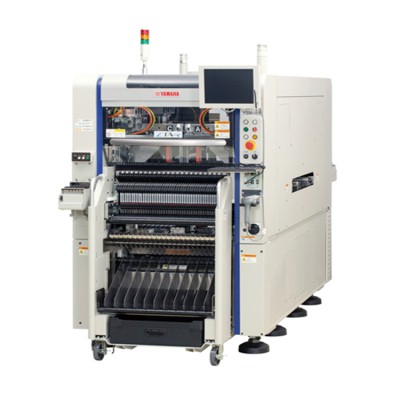

Yamaha Placement YSM20R
❙ Features of Yamaha Placement
Yamaha placement YSM20R with high-speed multi (HM) head, It supports component range from 0201 to W55 x L100mm, Height 15mm or less, Yamaha placement YSM20R placement speed 95,000CPH.
1. Achieves revolutionary productivity of 200,000 CPH
2. Highest productivity in the world!
3.Flexible response for different production configurations
4. High tech to support high mounting quality & a high machine operating rate
❙ Specification of Yamaha Placement
Model | 4-Beam, 4-Head Spec. (YSM40R-4) | 2-Beam, 2-Head Spec. (YSM40R-2) |
Applicable PCB | L700×W460mm to L50×W50mm | |
Speed | 200,000CPH (When using RS head) | 58,000CPH (When using MU head) |
Applicable components |
0201* to □6.5mm (Height 2.0mm or less) *option 03015 to 45×60m (Height 15mm or less) |
0402 to 45×100mm (Height 15mm or less) 0603 to 45×100mm (Height 25.5mm or less) |
Mounting accuracy |
+/-35μm (25μm) Cpk ≧1.0 (3σ) |
+/-40μm (30μm)
Cpk ≧1.0 (3σ)
|
Number of component types
* 8mm width tape conversion
|
Max. 80 feeders with RS heads
Max. 88 feeders with MU heads
Max. 84 feeders with RS x 2 + MU x 2 heads
|
92 feeders with MU or FL heads |
Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% | |
Air supply source | 0.45MPa or more, in clean, dry state | |
External dimension | L1,000×W2,100×H1,550mm | |
Weight | Approx. 2,100 kg |
❙ Company Proflie
Successful Experience:
Eta's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
❙ ETA Exhibition
❙ ETA Products Certificate
❙ ETA Global Service
❙ Customers' Feedback
❙ FAQ
![Reflow oven](/res/mindray/pdres/201905/20190508122519958.jpg)
If You Could Not Find Any Similar Items You Want, You May Send Some Photos to Us. Because Our Catalog and Website Haven't Included All of Our Products.
