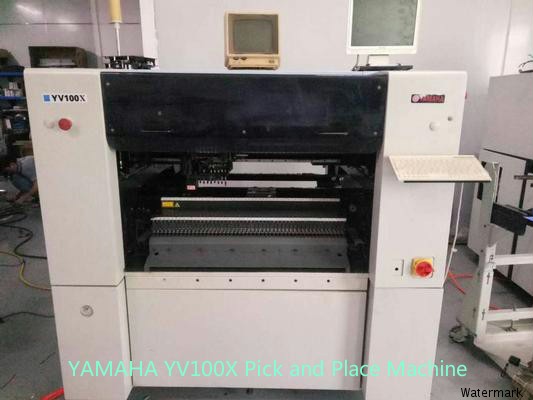

Yamaha SMT Pick and Place Machine
Model: Yamaha YV100-X
Yamaha YV100-X is a Multi-Functions High Precision, High-Speed Mounter PCB assembly System with 8 Heads and Multi-View high-speed vision processing, achieves actual high-speed mounting on All kind of Energy Meter, Mobile Charger, FM USB Card, all Kind of Lighting Products including 4ft Long PCBs as well as Flexible PCBs, Driver PCBs, SMPS, Power Supply, Inverter PCBs etc..
PCB Size: Min 50mm x 50mm Max 460mm x 335mm
Max PCB Handling: 1200mm, Min PCB Handling
Accuracy: +-0.1mm(Chips), +-0.08mm(QFP)
Mounting Speed: 0.198sec/chips, 1.7sec/QFP 20K CPH
Mounting Angle: +-180, per0.01
Feeder Space: 100 Nos of 8mm Feeders
Component Handling Capacity: From 0.6mmX0.3mm to 32mmX100mm
Maximum component height 6.5mm
Machine Dimension: L1,655XW1,408XH1,850mm
