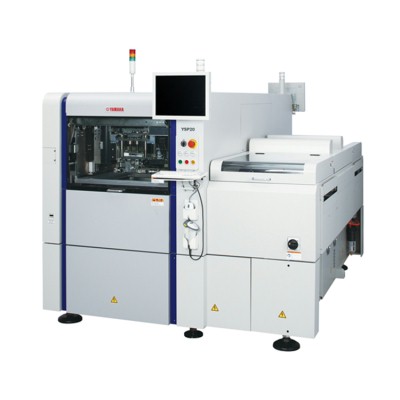

Name:YAMAHA YSP20 Solder Paste Printer Machine
Model:YAMAHA YSP20
Brief:

1. Super high-speed printing 5sec/cycle

2. Positioning repeatability 3σ:+/-0.005mm

3. Handles large PCBs L510 x W460mm

4. Large stencils front & rear MAX.750x750mm

Content

YAMAHA YSP20 Solder Paste Printer Machine

Paste Printer Machine

❙ Features

1. Super high-speed printing 5sec/cycle
2. Positioning repeatability 3σ:+/-0.005mm
3. Handles large PCBs L510 x W460mm
4. Large stencils front & rear MAX.750x750mm

❙ Specification

  YSP20
Applicable PCB L510 x W460mm to L50 x W50mm
Printing head 3S head (3S : Swing Single Squeegee)
Printing accuracy Printing accuracy (3σ) : +/- 0.025mm
Positioning repeatability (3σ) : +/- 0.005mm
Cycle time Approx. 5 sec (Standard printing : under optimum condition)
Applicable stencil size 750 x 750mm, 736 x 736mm
750 x 650mm, 650 x 550mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/- 10%
Air supply source 0.45MPa
External dimension L1,779 x W2,410 x H1,520mm (excluding projections)
Weigh Approx. 2,900kg
