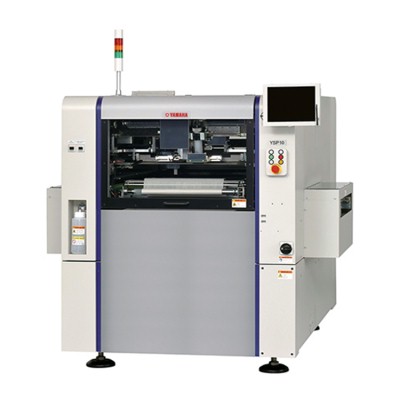

Name:YAMAHA YSP10 Solder Paste Printer
Model:YAMAHA YSP10 Printer
Brief:

High precision full-auto SMT printer, SMT stencil printer, PCB screen printing machine, for SMD assembly line.

Content

Yamaha YSP10 Premium Solder Paste Printer



❙ Features of Yamaha SMT Printer

High precision full-auto SMT printer, SMT stencil printer, PCB screen printing machine, for SMD assembly line.
1. Cycle time on the world’s fastest level!
2. Supports fully-automatic stencil replacement
3. Delivers both high quality & super-accurate printing!
4. Supports extra-large boards & large-size stencils

❙ Specification of Yamaha SMT Printer

  YSP10 SMT Printer
Applicable PCB L510 x W510mm to L50 x W50mm (option : L610 x W510mm)
Printing head 3S head (3S : Swing Single Squeegee) (option : Double squeegee head)
Printing accuracy Positioning repeatability (6σ) : +/- 0.01mm
Cycle time 10sec (Standard printing : under optimum condition, including board transfer time and printing time)
12sec (Including cleaning : under optimum condition, including board transfer time and printing time)
Applicable stencil size L750 x W750mm
L736 x W736mm (29″)
L750 x W650mm
L650 x W550mm
L584 x W584mm (23″)
Power supply Single-phase AC 200 to 230V +/-20V
Air supply source 0.45MPa or more
External dimension (excluding projections) L1,640 x W1,990 x H1,525mm (full range of options)
Weigh Approx. 1,700kg

❙ Company Profile

Reflow oven

ETA is the SMT machine supplier with professional 25-year-experienced sales and after sales team, providing SMT solutions including pick and place machine, reflow oven, SMT stencil printer, SMT line and wave soldering machine.
We also is the partner of JUKI pick and place machine and Hanwha/Samsung pick and place machine, can provide the best SMT technical services and accessories support for JUKI, Hanwha/Samsung, YAMAHA, PANASONIC brands.
Successful Experience:

Eta's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

❙ ETA SMT Machine Exhibition

Reflow oven

Reflow oven

❙ ETA SMT Machine Certificate

Reflow oven

❙ ETA Global Service

SMT Reflow oven

❙ Customers' Feedback

❙ FAQ

Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.

Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.

Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.

Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.

Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.

Q:  Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
❙ Packaging & Shipping
Packaging

If You Could Not Find Any Similar Items You Want, You May Send Some Photos to Us. Because Our Catalog and Website Haven't Included All of Our Products.

❙ Yamaha Pick and Place Machine Video
