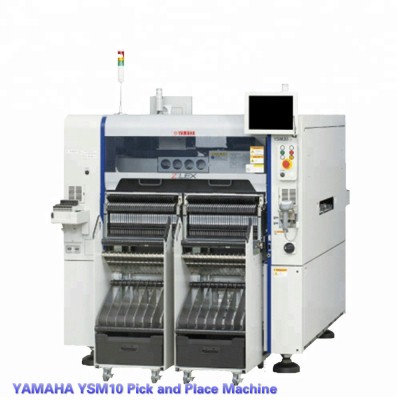

Name:YAMAHA YSM10 pick and place Machine
Model:YAMAHA YSM10
Brief:

YSM series entry model mounter that achieved both the world’ s fastest speed and versatility in its class worldwide!

Content

  • YSM series entry model mounter that achieved both the world’ s fastest speed and versatility in its class worldwide!
  • Ultimate basic machine featuring the three "1"
  • Flexible response for different production configurations!
  • Functions that ensure stable production
*
Comparison of chip mounting performance (CPH) under optimal conditions in 1-beam 1-head class surface mounters (In-house company research as of January 2017)
YSM10
Applicable PCB L 510 x W 460mm - L 50 x W 50mm
Note : Available in lengths up to L950mm as an option.
Applicable components 03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less
Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm
Mounting capability HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor)
HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor)
Mounting accuracy
(Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
+/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ)
Number of component types Fixed plate : Max. 96 types (conversion for 8mm tape feeder)
Tray : 15 types (maximum when equipped with sATS15, JEDEC)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension L1,254 x W1,440 x H1,445mm
Weight Approx. 1,270kg
Specifications and appearance are subject to change without prior notice.
